Grounding Electrode Explained: What Electricians Need to Know

A grounding electrode is the conductive part of the electrical system that makes a direct connection to earth. In practical jobsite terms, it is the part that ties the electrical system to the earth through an approved electrode such as a ground rod, metal underground water pipe, building steel, or a concrete-encased electrode.

This matters in both real work and exam prep because electricians often mix up three different things:

• the grounding electrode
• the grounding electrode conductor
• the full grounding electrode system

If those terms blur together, it becomes easy to wire the system wrong or miss an NEC question that is really testing definitions and system layout.

What is a grounding electrode?

A grounding electrode is the actual conductive object that establishes the connection to earth. Under NEC grounding rules, the system is not limited to one type of electrode. A building may have more than one qualifying electrode present, and when that happens, those electrodes are bonded together into a grounding electrode system.

• the electrode is the object in contact with earth
• the grounding electrode conductor connects the service or separately derived system to that electrode
• the system is the full bonded group of electrodes present at the building or structure

That distinction is one of the biggest grounding basics electricians need to keep clear.

Grounding electrode vs grounding electrode conductor

This is where a lot of apprentices get tripped up.

A grounding electrode is not the same thing as a grounding electrode conductor.

The grounding electrode is the thing in or on the earth:

• rod electrode
• concrete-encased electrode
• metal underground water pipe
• structural metal that qualifies
• other NEC-recognized electrodes

The grounding electrode conductor is the conductor used to connect the grounded conductor and/or equipment grounding path to the electrode system at the service or source, depending on the installation. OSHA’s construction definitions also distinguish the grounding electrode conductor this way in 29 CFR 1926.449 and 1926.404(f).

A simple way to remember it:

• electrode = the grounding point
• conductor = the wire that connects to it

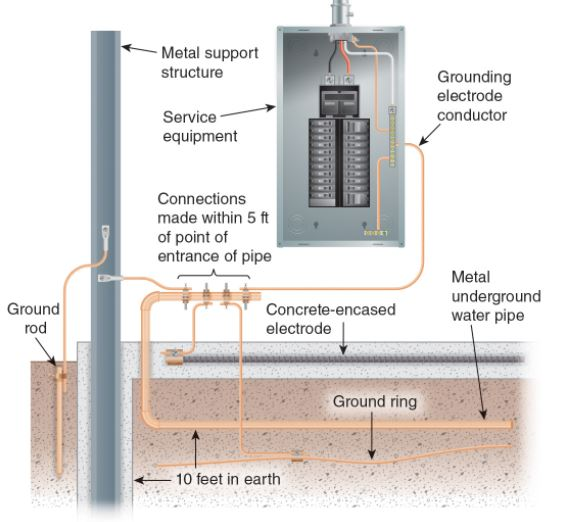

What is a grounding electrode system?

Under NEC 250.50, if one or more grounding electrodes are present at the building or structure, they must be bonded together to form the grounding electrode system.

That is important because electricians sometimes talk like the system is just “the rod.” That is not always true.

If the building has qualifying electrodes already present, the NEC approach is not “pick your favorite one and ignore the rest.” The rule is to bond together all electrodes that are present and recognized by the code.

That is why grounding work often involves more than driving one rod and calling it done.

Common grounding electrodes that electricians run into

Exact code wording should be checked in the adopted NEC edition, but the main NEC-recognized examples electricians commonly deal with include:

• metal underground water pipe
• metal in-ground support structure
• concrete-encased electrode
• ground ring
• rod and pipe electrodes
• plate electrodes
• other listed or recognized electrodes under NEC Article 250

For most residential and light commercial electricians, the most familiar ones are:

• the ground rod
• the concrete-encased electrode
• the metal underground water pipe, when it qualifies

Why the concrete-encased electrode matters

The concrete-encased electrode is one of the highest-value exam and field topics because many electricians hear “ufer ground” all the time without really knowing what the rule is testing.

NFPA revision materials for NEC 250.52(A)(3) show the commonly recognized requirements:

• at least 20 feet of qualifying encased metal
• typically rebar not smaller than 1/2 inch, or qualifying conductor such as bare 4 AWG copper
• at least 2 inches of concrete encasement
• concrete foundation or footing in direct contact with earth

The practical lesson is this: a concrete-encased electrode is not just “any rebar in concrete.” It has to meet the code conditions.

This matters because electricians regularly run into confusion about:

• whether short pieces of rebar count
• whether isolated concrete counts
• whether vapor barriers or separation from earth affect the installation
• whether only one qualifying concrete-encased electrode has to be bonded when multiple are present

For VoltageLab readers, this is also a strong app-fit topic because it sits right at the overlap of NEC memory work, grounding and bonding, and journeyman exam review.

What grounding does and does not do

Grounding is often explained too loosely.

OSHA’s grounding guidance explains that grounding creates an intentional low-resistance path to earth to help limit dangerous voltage buildup and manage fault or surge conditions. But electricians should still remember that grounding is only one part of the safety picture.

Grounding does not replace:

• proper bonding
• overcurrent protection
• correct conductor sizing
• equipment grounding paths
• safe work practices

That is one reason grounding and bonding questions are so common on exams. The code expects electricians to understand how the parts work together, not as isolated definitions.

Common field mistakes

Confusing the rod with the whole system

A ground rod may be part of the system, but it is not automatically the entire grounding electrode system.

Mixing up grounding electrode conductor and equipment grounding conductor

These are not interchangeable terms, and they do not perform the same role.

Assuming any rebar is a concrete-encased electrode

It has to meet the NEC conditions, not just exist somewhere in concrete.

Ignoring electrodes already present at the building

If qualifying electrodes are present, NEC 250.50 is about bonding them together into a system.

Treating grounding like a cure-all

Grounding is essential, but it does not replace bonding, fault-current path planning, or safe installation methods.

Final takeaway

A grounding electrode is the conductive object that connects the electrical system to earth. A grounding electrode conductor is the conductor that ties the service or source to that grounding electrode system. And the grounding electrode system is the bonded group of all qualifying electrodes present at the building or structure.

For electricians, the practical takeaway is simple:

• learn the definitions cleanly
• do not confuse the electrode with the conductor
• know the common electrode types
• pay close attention to the concrete-encased electrode rules
• remember that NEC grounding is about the full system, not just one rod in the dirt

FAQ

What is a grounding electrode?
A grounding electrode is the conductive object that establishes the electrical system’s connection to earth.

What is the difference between a grounding electrode and a grounding electrode conductor?
The electrode is the object in contact with earth. The grounding electrode conductor is the conductor that connects the service or source to that electrode system.

Is a ground rod the same as a grounding electrode?
A ground rod is one type of grounding electrode, but it is not the only type.

What is a grounding electrode system?
It is the bonded-together group of all NEC-recognized grounding electrodes present at a building or structure.

What is a concrete-encased electrode?
It is an NEC-recognized grounding electrode formed by qualifying metal encased in concrete that is in direct contact with earth.

Does every building only need one electrode?
Not necessarily. If multiple qualifying electrodes are present, NEC 250.50 requires them to be bonded together into a grounding electrode system.
