Circuit Breakers

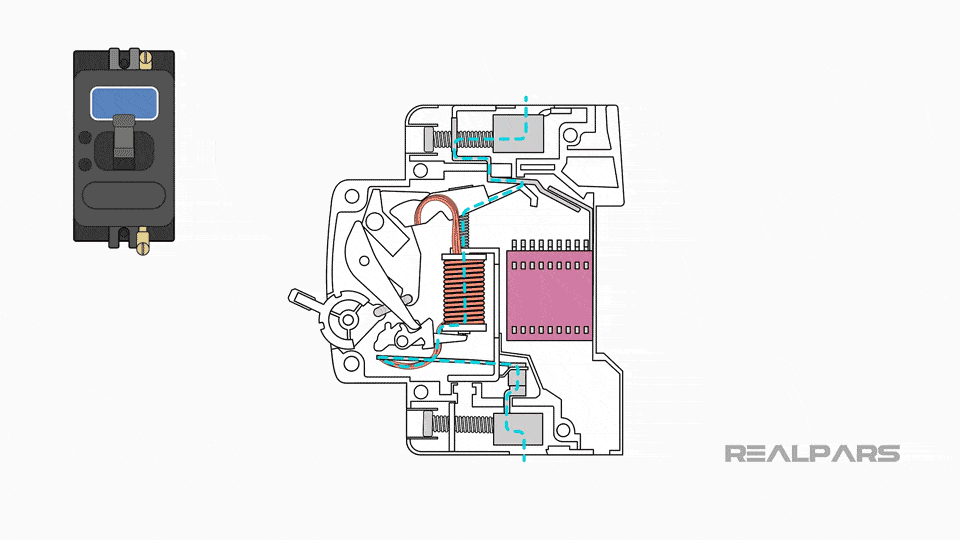

This animation shows the internal mechanism of a circuit breaker and how it automatically cuts off electrical power during a fault.

A circuit breaker detects overcurrent or short-circuit conditions and quickly separates its contacts to protect wiring, appliances, and the entire electrical system.

Key Components:

• Incoming & Outgoing Terminals: Where electrical power enters and leaves the breaker.
• Contacts: Open or close the circuit. They separate instantly during a fault.
• Bimetallic Strip (Thermal Protection): Bends when heated by overload current, triggering a slow trip.
• Electromagnetic Coil (Magnetic Protection): Detects short circuits by creating a strong magnetic pull for fast tripping.
• Operating Lever / Switch: Allows manual ON/OFF control and indicates trip status.
• Latch & Spring System: Releases the internal mechanism to open contacts when a fault occurs.

Working Principle:

A circuit breaker has two protection mechanisms:

1. Thermal Trip (Overload Protection)

• When current exceeds the rated value for some time, → the bimetallic strip heats up and bends.
• This movement releases the latch, causing the contacts to open.
• Used for gradual overloads, like too many appliances running at once.

2. Magnetic Trip (Short-Circuit Protection)

• A sudden, very high current creates a strong magnetic field in the coil.
• The coil instantly pulls the plunger, releasing the latch.
• Contacts open immediately to stop dangerous fault currents.

Once tripped, the breaker must be reset manually after the fault is cleared.

⚡ Tip:

Circuit breakers combine thermal and magnetic protection, making them far safer and more reliable than traditional fuses.
