Pressure Sensor
65f854814fd223fc3678f6ee Pressure Switch contacts

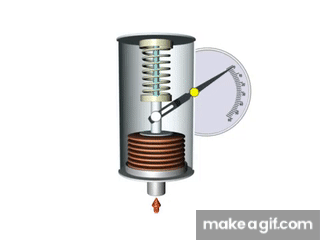

65f854814fd223fc3678f6f4 What is a Pressure sensor

Pressure Sensors measure the force exerted by a fluid (liquid or gas) and convert it into an electrical signal.

Common types:

  • Strain Gauge Sensors – detect pressure via deformation of a material.
  • Piezoelectric Sensors – generate voltage when pressure is applied.
  • Capacitive Sensors – change capacitance with pressure changes.

Used in industrial automation, hydraulics, pneumatics, and process control.
