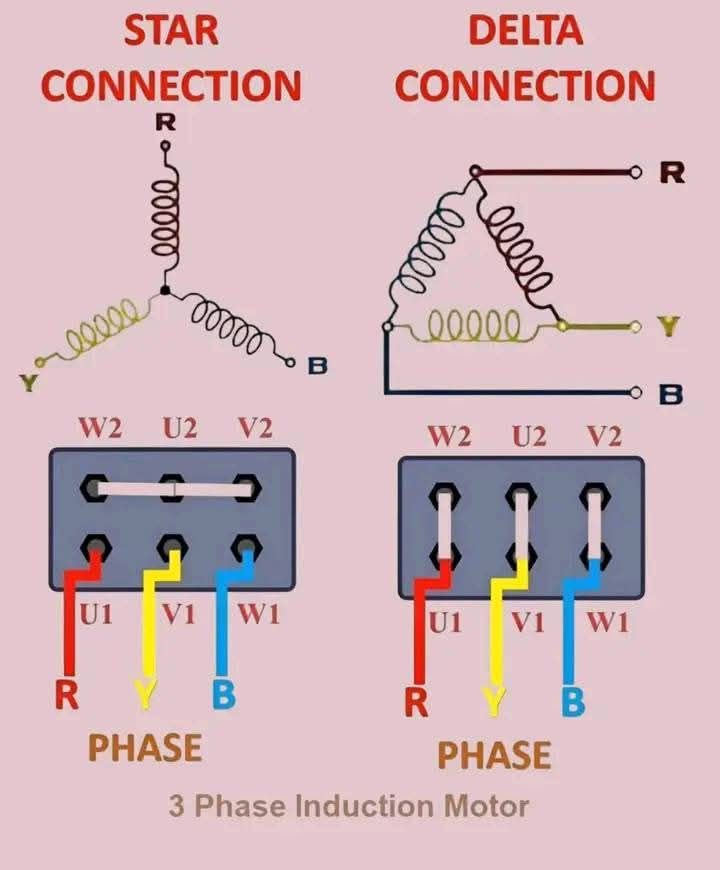

🌟 Star Connection vs 🔺 Delta Connection
Star Connection (Y):
- Each phase winding is connected to a common neutral point.
- Phase voltage = Line voltage ÷ √3.
- Used for starting motors with reduced voltage and current.
- Suitable for long-distance transmission due to lower current.
Delta Connection (Δ):
⚡ AI-Powered Electrician App
Study smarter with VoltageLab
Built for electricians, apprentices, and electrical engineers who want faster practice and better exam prep.
⭐️ Join thousands of electricians upgrading their skills
- Windings are connected end-to-end forming a closed loop.
- Phase voltage = Line voltage.
- Used for running motors at full load with high torque.
- Common in short-distance distribution and heavy-duty motors.
⚡ In short: Star → lower current, safe starting; Delta → higher power, efficient running.
